Pile layout plotter for AutoCAD

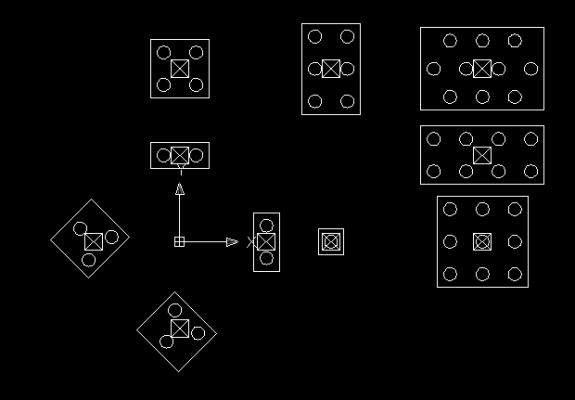

An app developed to provide the designer with a quick layout in AutoCAD, of pile foundation for some preliminary decisions as to which all columns are to be provided with combined pile caps, for example. It also checks which all piles are closer to each other than the minimum required distance and highlights them by a line connecting them... read on, and get the app (its a fruit of a hobby, and thereforefreeto download and use):

https://rahulleslie.blogspot.com/p/layout-plotter-in-many-of-structural.html?m=1
